External Multimedia Device Interface -- SYSTEM OVERVIEW
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

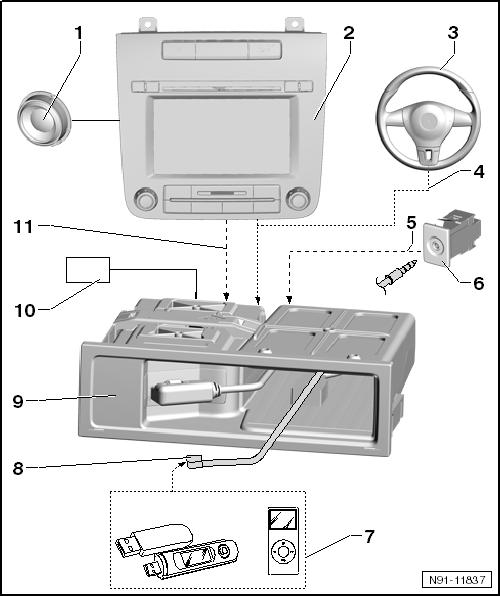

- Radio and Radio/Navigation System Speaker System
- Radio or Radio/Navigation System
- Multifunction Steering Wheel
- CAN Bus
- LF Wire
- The audio signal from the unit connected to the AUX IN socket runs through this wire and into the External Multimedia Device Interface -R215-.
- External Audio Source Connection -R199-
- In the center console storage compartment under the front armrest
- Removing and installing. Refer to External Audio Source Connection -R199-, AUX IN JACK, REMOVING AND INSTALLING
- Input Units for Connecting to the External Multimedia Device Interface -R215-
- MP3 player
- Memory sticks
- iPod player
- Connection to the external multimedia device interface via the USB port
- Wire Connection to the External Multimedia Device Interface -R215-
- In the form of specific adapter cables depending on the unit to be connected
- External Multimedia Device Interface -R215-
- Removing and installing. Refer to EXTERNAL MULTIMEDIA DEVICE INTERFACE, REMOVING AND INSTALLING
- Positive and Negative Voltage Supply Connection for the External Multimedia Device Interface -R215-
- LF Wire
- The audio signal is transmitted via the wire connection from the External Multimedia Device Interface -R215- into the AUX input for the radio or radio/navigation system.
