Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Radio Removal ToolT10057
- Fiber Optic Repair SetVAS6223
- Fiber-Optic Repair Set - Connector Protective CapsVAS6223/9

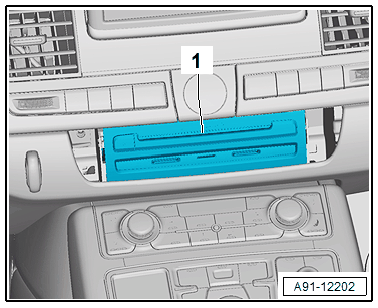

The Information Electronics Control Module 1 -J794- -1- is located inside the instrument panel.
NOTE:
If replacing the control module, select the "Replace Control Module" function Vehicle Diagnostic Tester.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
