Driveshaft - Exploded View
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

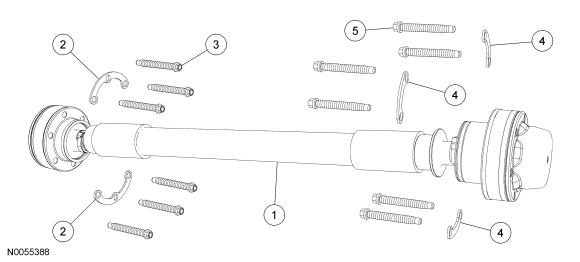

Front, Expedition and Navigator
| Item | Part Number | Description |
|---|---|---|
| 1 | 4A376 | Driveshaft assembly |
| 2 | 4682 | CV joint washers (2 required) |
| 3 | 4N272 | Front CV bolt (6 required) |
| 4 | 4682 | Rear CV washers (3 required) |
| 5 | 4N272 | Rear CV bolt (6 required) |

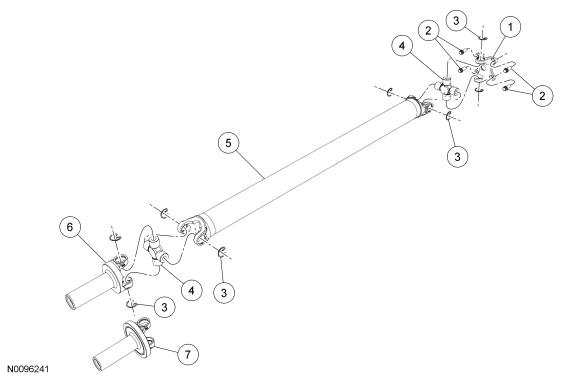

Rear - Navigator Four-Wheel Drive(4WD), Expedition 4WD and Rear Wheel Drive(RWD)
| Item | Part Number | Description |
|---|---|---|
| 1 | 4A378 | Driveshaft flange yoke |
| 2 | N800594 | Bolts |
| 3 | - | Snap rings (part of 4635) |
| 4 | 4635 | U-joint assemblies |
| 5 | 4602 | Driveshaft assembly |
| 6 | 4841 | Driveshaft slip yoke (Expedition/Navigator) |
| 7 | 4A335 | Driveshaft slip yoke (Expedition EL/Navigator L) |

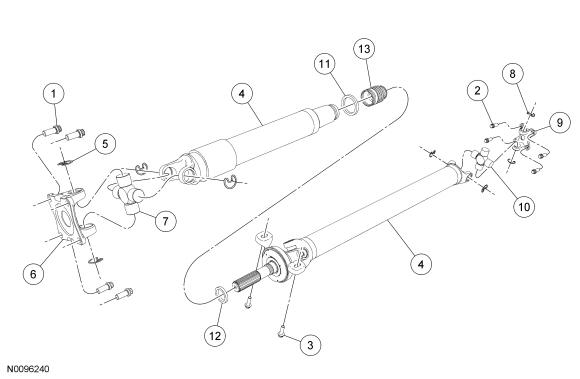

Rear, Navigator Rear Wheel Drive(RWD)
| Item | Part Number | Description |
|---|---|---|
| 1 | N800594 | Driveshaft front flange bolt (4 required) |
| 2 | N800594 | Driveshaft rear flange bolt (4 required) |
| 3 | N897487 | Driveshaft center bearing bolt (2 required) |
| 4 | 4R602 | Driveshaft assembly |
| 5 | - | Front snap rings |
| 6 | 4A378 | Front driveshaft flange (part of 4R602) |
| 7 | 4635 | Front U-joint |
| 8 | - | Rear snap rings |
| 9 | 4A378 | Driveshaft flange (part of 4R602) |
| 10 | 4635 | Rear U-joint |
| 11 | 3B478 | Clamp |
| 12 | 3B478 | Clamp |
| 13 | 4421 | Boot |
