Left And Right Effects Speaker -R209- / -R210-, Removing And Installing, 9VS: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

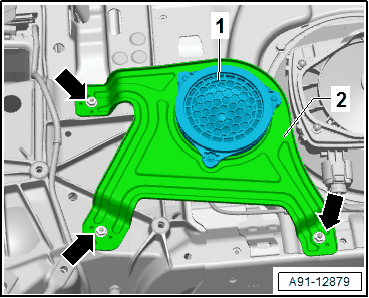

-- Release and disconnect the connector from the Left Effects Speaker -R209- -1-.
-- Remove the nuts -arrows- from the Left Effects Speaker -R209- -1-.
-- Remove the Left Effects Speaker -R209- -1- with the bracket -2-.
