Component Location Overview - Windshield Wiper System

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.

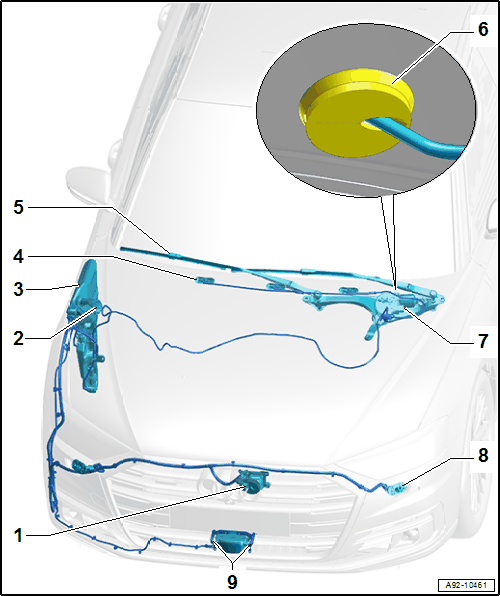

GWWA92-10461Courtesy of AUDI OF AMERICA, LLC
  1. Night Vision System Camera -R212- Washer Nozzle
  2. Filler Neck
  3. Washer Fluid Reservoir
  4. Washer Nozzle
  5. Windshield Wiper Arm
  6. Grommet
    • Equipped on some models. Refer to the Parts Information
    • For the windshield washer fluid hose inside the hood
  7. Windshield Wiper Motor -V-
  8. Headlamp Washer System Washer Nozzle
  9. Spray Nozzles
