Component Location Overview - Electrical Components

Electrical/Electronic Components and Component Locations, Rear Final Drive (All Wheel Drive Clutch Generation "AWD V")

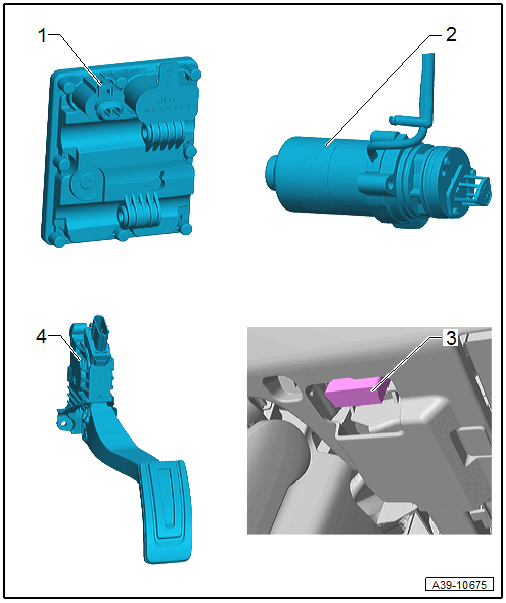

Fig 1: BorgWarner Components Location

Courtesy of AUDI OF AMERICA, LLC

1. All Wheel Drive Control Module -J492-
   • Important signals are transmitted from the engine control module and ABS Control Module -J104- via the Data bus to the All Wheel Drive Control Module -J492-.
   • Overview. Refer to OVERVIEW - ALL-WHEEL DRIVE CLUTCH .
   • Removing and installing. Refer to CONTROL MODULE, REMOVING AND INSTALLING .
2. All Wheel Drive Clutch Pump -V181-
   • Can be checked in "Guided Fault Finding"  using the Vehicle Diagnostic Tester
   • Removing and installing. Refer to ALL WHEEL DRIVE CLUTCH PUMP, REMOVING AND INSTALLING .
3. Data Link Connector
   • Component location: inside the left front footwell
4. Accelerator Pedal Position Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185-
   • Removing and installing. Refer to [For engine(s) CNTC, CYFB, CNSB, CZRA, DAZA] Accelerator Mechanism .
