Final Drive Identification

• The >>all wheel drive clutch<< is installed in the final drive.
• The final drive and >>all wheel drive clutch<< have separate oil circuits.
• The final drive is equipped with the >>All Wheel Drive Clutch Generation V<<.

Rear final drive allocation

Rear Final Drive -0CQ-

Courtesy of AUDI OF AMERICA, LLC

• The code -arrow- on the >>bottom<< of the final drive identifies which final drive is installed.

Example of the code on the rear final drive "0CQ".

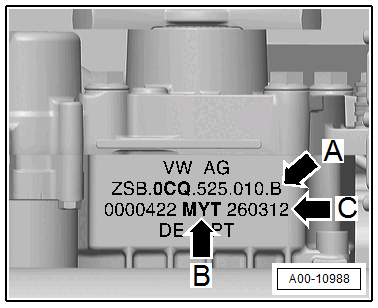

Fig 1: Identifying Identification Code On Bottom Of Final Drive

Courtesy of AUDI OF AMERICA, LLC

-Arrow A- final drive part number

-Arrow B- final drive code

-Arrow C- Final drive production date

• If there are no codes -arrow B- present, then use the part number -arrow A- for the allocation. Refer to the Parts Information.

Example:

Additional data depends on the manufacturing.
