Engine Mount, Removing And Installing: Removing: Notes

-- Support the engine in its installed position. Refer to ENGINE, SUPPORTING IN INSTALLED POSITION .

-- Remove the affected front wheel. Refer to WHEELS AND TIRES .

-- Remove the front noise insulation. Refer to NOISE INSULATION .

-- Remove the corresponding wheel spoiler. Refer to WHEEL HOUSING LINER .

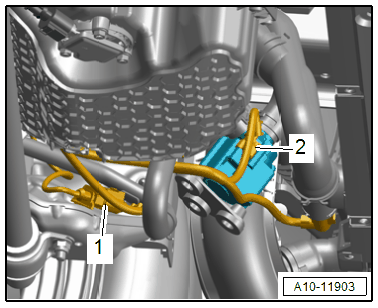

-- Remove the connector -1- for Left Electrohydraulic Engine Mount Solenoid Valve -N144- /Right Electrohydraulic Engine Mount Solenoid Valve -N145- (depending on the transmission) from the bracket and disconnect.
