Engine, Supporting In Installed Position: Procedure

-- Remove the engine cover. Refer to ENGINE COVER .

-- Remove the left and right foam wedge -1-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore the -arrows-.

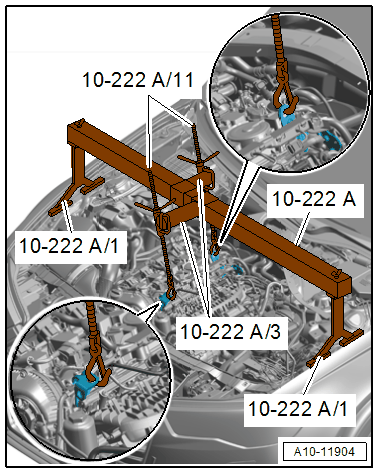

-- Position the :10-222A on the left and right upper wheel housing longitudinal member, as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Engage the :10-222A/11 on the engine lifting eye.

-- Lightly pretension engine with spindles.
