Window Guide, Removing And Installing: Installing
Install in reverse order of removal. Note the following:

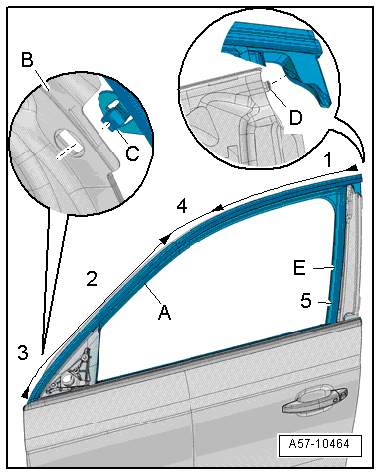

-- Attach the window guide -A- to the door flange in sequence -1 through 5-, as illustrated.
-- Position the upper edge of the window guide on the B- pillar door flange and push forward.
- While doing this the guide pins -D- must engage in the window guide mount.
-- Align the window guide on the A-pillar guide rail and place the seal in the guide rail.
-- Push the window guide forward, while doing this the clip -C- must engage audibly in the door flange -B-.
-- Press the window guide on the door flange.
-- Install the B-pillar trim (refer to FRONT DOOR B-PILLAR TRIM, REMOVING AND INSTALLING ) and place the seal -E- in the guide rail.
-- Install the mirror adjustment unit mount. Refer to MIRROR ADJUSTING UNIT MOUNT, REMOVING AND INSTALLING .
-- Install the door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
-- Install the front window frame trim panel. Refer to INSTALLING .
