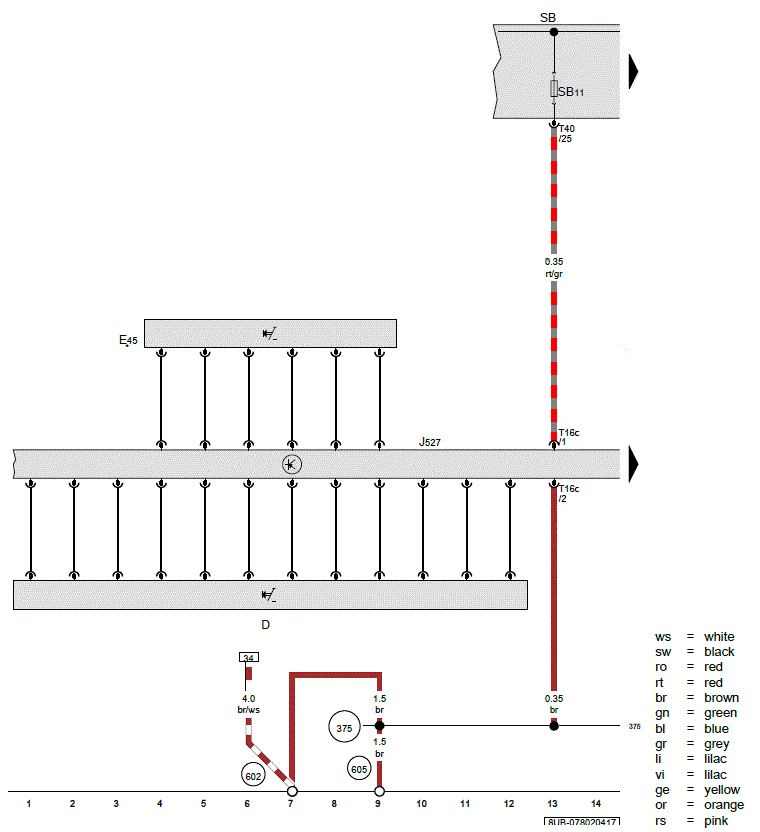

Ignition/Starter Switch, Cruise Control Switch, Steering Column Electronics Control Module

D  Ignition/starter switch

E45  Cruise control switch

J527  Steering column electronics control module

SB  Fuse panel B

SB11  Fuse 11 (on fuse panel B)

T16c  16-pin connector, black

T40  40-pin connector, black

(375) Ground connection 10 (in main wiring harness)

(602) Ground connection in left front footwell

(605) Ground connection on upper steering column

*  Only for vehicles with cruise control
