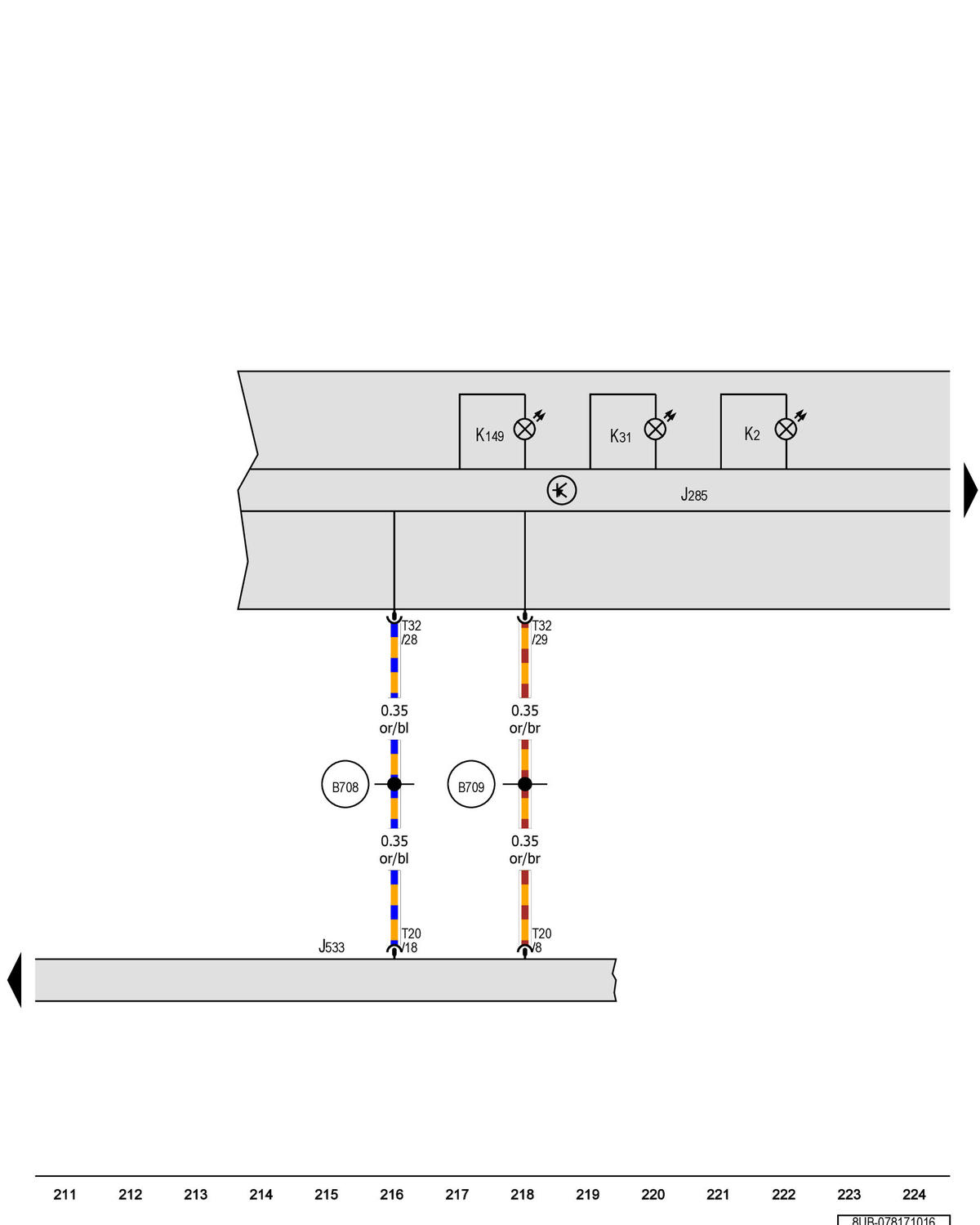

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface

J285  Instrument cluster control module

J533  Data bus on board diagnostic interface

K2  Generator indicator lamp

K31  Cruise control indicator lamp

K149  Engine electronics indicator lamp

T20  20-pin connector, red

T32  32-pin connector, blue

(B708) Instrument cluster CAN bus high connection 1 (in main wiring harness)

(B709) Instrument cluster CAN bus low connection 1 (in main wiring harness)
