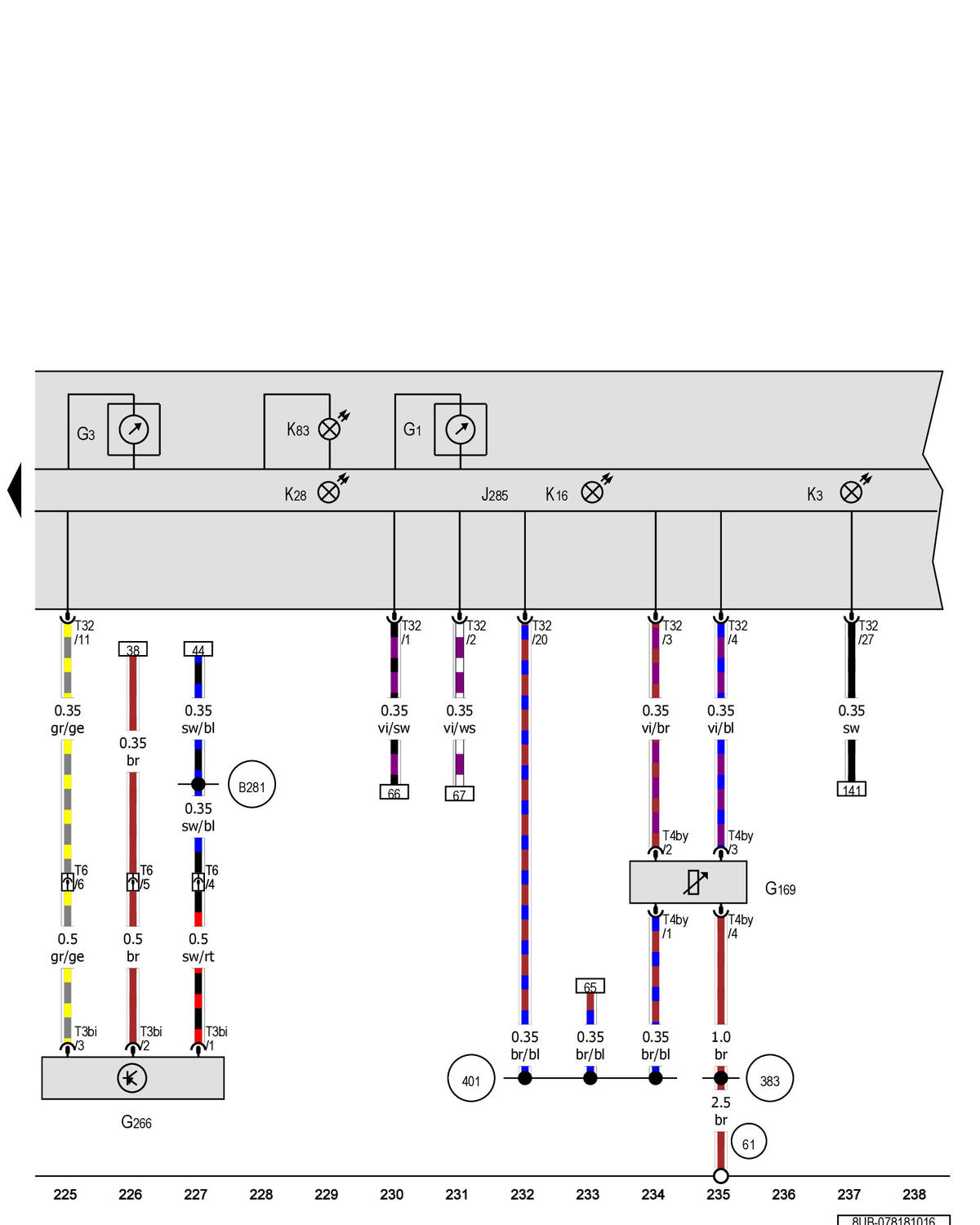

Oil Level Thermal Sensor, Instrument Cluster Control Module

G1  Fuel gauge

G3  Engine coolant temperature gauge

G169  Fuel level sensor 2

G266  Oil level thermal sensor

J285  Instrument cluster control module

K3  Oil pressure indicator lamp

K16  Low fuel level indicator lamp

K28  Engine coolant level/temperature indicator lamp

K83  Malfunction indicator lamp

T3bi  3-pin connector

T4by  4-pin connector

T6  6-pin connector, near the left front longitudinal member

T32  32-pin connector, blue

(61) Ground connection on left C-pillar

(383) Ground connection 18 (in main wiring harness)

(401) Sensor ground connection (in interior wiring harness)

(B281) Positive connection 5 (15a) (in main wiring harness)
