Peripheral Camera, Calibrating: Notes

• The vehicle must be on a level surface.
• Set-up the requirements for the calibration equipment/calibration environment. Refer to Peripheral Camera, Calibrating
• Set-up the requirement for the vehicle. Refer to Peripheral Camera, Calibrating
• Roll out the Calibration System - VAS721001- at the left and right near the vehicle.

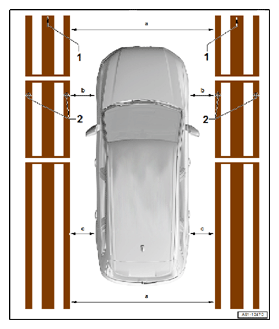

• The arrows -1- in the Calibration System - VAS721001- points in the direction of travel.
• Install the rear and front clamping strip on the Calibration System - VAS721001-.
• Align the crosshairs -2- on the Calibration System - VAS721001- to the front axle of the vehicle (center front wheel).
• Align both calibration devices parallel. The vehicle must be located in the center between both calibration devices.

Pay attention to the following measurement requirements:

• Dimension -a- 2000 to 2500 mm ± 5 mm, front and rear the same
• The dimension -b- must be the same on both sides
• The dimension -c- must be the same on both sides
  • Connect the Vehicle Diagnostic Tester.
