Window Guide, Removing And Installing: Installing

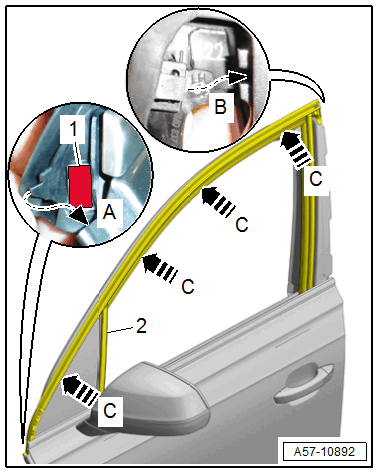

-- Engage the window guide -2- on the rear door flange in direction of -arrow A-.
-- Starting at the back push on the window guide on the door flange in direction of in direction of -C arrows- and then in the guide on the fixed front door window.
-- Remove the protective film from the adhesive tape -1- and apply the front window guide at the same time the lower raised section of the door panel must engage in direction of -arrow A-.
Further installation is the reverse order of removal.
