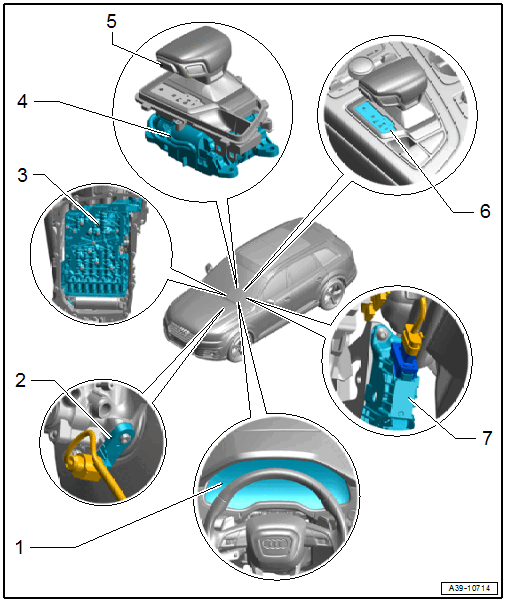

Component Location Overview - Transmission Control

Courtesy of AUDI

1. Instrument Cluster
   • With Instrument Cluster Control Module -J285-
   • Overview. Refer to OVERVIEW - INSTRUMENT CLUSTER .
2. Brake Lamp Switch -F-
   • Overview. Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER ,
3. Mechatronic
   • With hydraulic pulse memory
   • The following components are integrated in the Mechatronic:
     • Transmission Control Module -J217-
     • Solenoid Valve 1 -N88-
     • Automatic Transmission Pressure Regulating Valve 1 -N215-
     • Automatic Transmission Pressure Regulating Valve 2 -N216-
     • Automatic Transmission Pressure Regulating Valve 3 -N217-
     • Automatic Transmission Pressure Regulating Valve 4 -N218-
     • Automatic Transmission Pressure Regulating Valve 5 -N233-
     • Automatic Transmission Pressure Regulating Valve 6 -N371-
     • Automatic Transmission Pressure Regulating Valve 7 -N443-
     • Accumulator Solenoid -N485-
     • Parking Lock Solenoid -N486-
     • Transmission Fluid Temperature Sensor -G93-
     • Transmission Input Speed Sensor -G182-
     • Transmission Output Speed Sensor -G195-
     • Temperature Sensor In Control Module -G510-
     • Parking Lock Sensor -G747-
   • The components cannot be replaced separately if faulty.
   • OBD checks all components.
   • Overview. Refer to OVERVIEW - TORQUE CONVERTER .
4. Shift Mechanism
   • The following components are integrated in the selector mechanism:
     • Selector Lever -E313-
     • Selector Lever Position Sensor -G727-
     • Transverse Selector Lever Lock Sensor -G868-
     • Selector Lever Sensor System Control Module -J587-
     • Shift Lock Solenoid -N110-
     • Transverse Selector Lever Lock Motor -V577-
   • The components cannot be replaced separately if faulty.
   • Overview. Refer to OVERVIEW - SHIFT MECHANISM .
5. Selector Lever Handle
   • The following components are integrated in the selector mechanism:
     • Selector Lever Release Button -E681-
     • Parking Lock Button -E816-
   • The components cannot be replaced separately if faulty.
   • Overview. Refer to OVERVIEW - SHIFT MECHANISM .
6. Selector Lever Transmission Range Display -Y5-
   • Removing and installing. Refer to OVERVIEW - CENTER CONSOLE LAMPS .
7. Kick Down Switch
   • A specific value from accelerator pedal module with the Accelerator Pedal Position Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185- is stored in the engine control module.
   • Accelerator pedal module, removing and installing. Refer to OVERVIEW - ACCELERATOR PEDAL MODULE .
