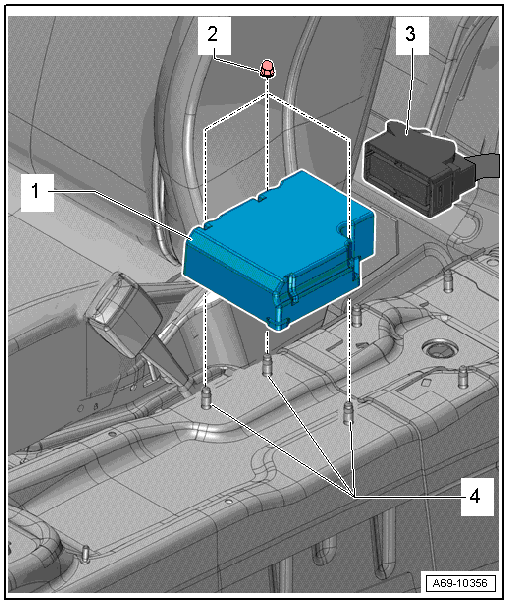

Overview - Airbag Control Module
- Airbag Control Module -J234-
- Removing and installing. Refer to Airbag Control Module -J234-, REMOVING AND INSTALLING .
- Control module is grounded via the housing with the body.
- Nut
- 9 Nm
- Quantity: 3
- The thread must be paint and contaminant free, nut and ground bolts serve as ground connection for the control module
- Connector
- Threaded Pins
- The thread must be paint and contaminant free, nut and ground bolts serve as ground connection for the control module
