Rearview Camera System Control Module -J772- CONNECTORS, THROUGH MY 2016

Rearview Camera System Control Module J772

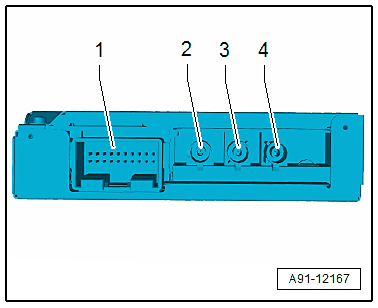

Fig 1: Rearview Camera System Control Module -J772-

Courtesy of AUDI OF AMERICA, LLC

1. 20-Pin Connector - T20i-
2. CVBS OUT to Information Electronics Control Module 1 -J794-
3. CVBS input from Rearview Camera -R189-
4. Not Assigned

3 - 20-Pin Connector T20i

Fig 2: 20-Pin Connector -T20b-

Courtesy of AUDI OF AMERICA, LLC

9 -  Rearview Camera -R189- Power Supply

10 -  Terminal 30

11 -  CAN bus low, Infotainment

12 -  CAN bus high, Infotainment

19 -  Terminal 31 to the Rearview Camera -R189-

20 -  Terminal 31
