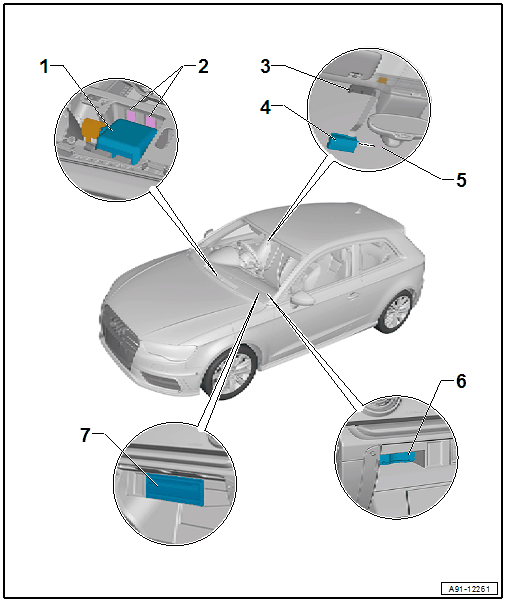

Navigation System Component Location Overview, Japan

Courtesy of AUDI OF AMERICA, LLC

1. Near Field Communication Antenna -R269-
   • Removing and Installing. Refer to CLOSE RANGE COMMUNICATION ANTENNA, REMOVING AND INSTALLING .
2. Catch
3. Bracket
   • Glued to the windshield
4. Traffic Data Antenna -R173-
   • Removing and Installing. Refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING .
5. Retaining Piece
6. Chip Card Reader Control Module -J676-
   • Connector Assignment. Refer to Chip Card Reader Control Module -J676- .
   • Removing and Installing. Refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING .
7. Information Electronics Control Module 1 -J794-
   • Connector Assignment, through MY 2016. Refer to MMI NAVIGATION PLUS (7UG), THROUGH MY 2016
   • Connector Assignment, from MY 2017. Refer to NAVIGATION STANDARD (7UF), MMI NAVIGATION PLUS (7UG), FROM MY 2017
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
