Control Module/Digital Sound System Amplifier, Removing And Installing: Notes

Special tools and workshop equipment required

Fiber-Optic Repair Set - Connector Protective Caps: VAS 6223/9 .

Fig 1: Fiber-Optic Conductor Repair Set VAS 6223A
Courtesy of AUDI OF AMERICA, LLC
Torque Screwdriver: V.A.G 1624

Fig 2: Identifying Torque Screwdriver VAG1624
Courtesy of AUDI OF AMERICA, LLC

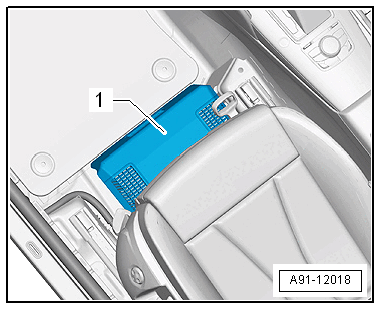

The Digital Sound System Control Module -J525- -1- is located under the left front seat.

Fig 3: Locating Digital Sound System Control Module -J525-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

If replacing the control module, select the "Replace control module" function for the corresponding control module on the Vehicle Diagnostic Tester.
