Window Guide, Removing And Installing: Removing

-- Remove the door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

-- Remove the B-pillar trim. Refer to DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the A-pillar trim. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING .

-- Sedan: remove the trim molding. Refer to FRONT DOOR TRIM MOLDING, REMOVING AND INSTALLING, SEDAN .

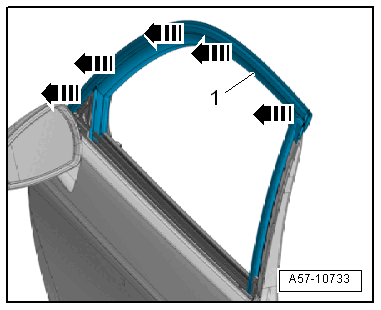

-- Remove the window guide -1- outward from the window frame in direction of -arrows-.

GWWA57-10733Courtesy of AUDI OF AMERICA, LLC
