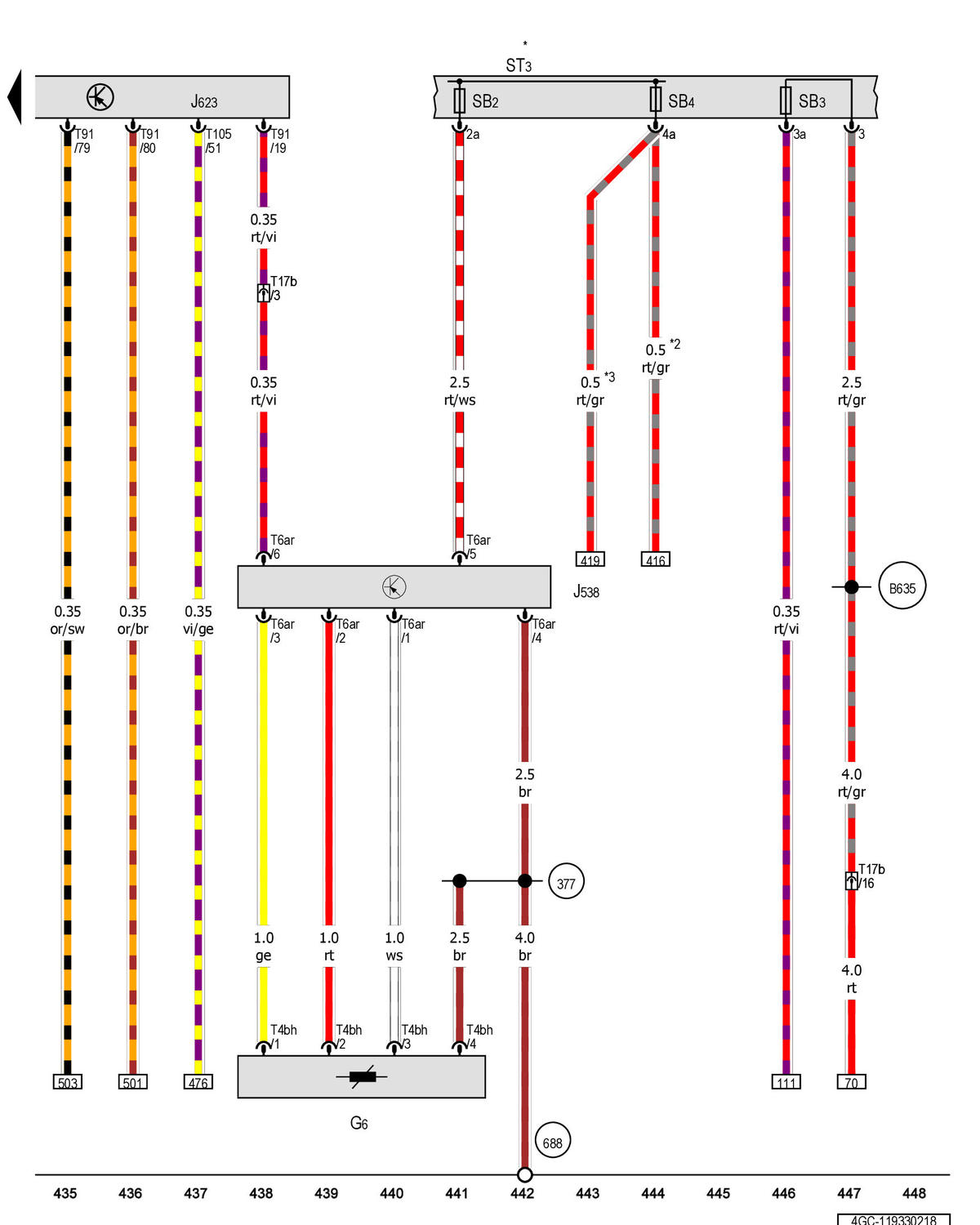

Transfer Fuel Pump, Fuel Pump Control Module, Engine/Motor Control Module: Notes

GWW4GC-119330218

Courtesy of AUDI OF AMERICA, LLC
