Driver Assistance Systems Front Camera, Removing And Installing: Removing

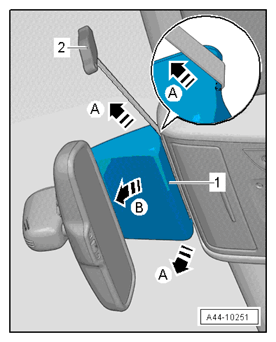

• Release the cover plate -1- for the Camera Control Module -J852- from the retaining plate in direction of -arrows A- with the -3370- -2- alternating from the right and the left and remove downward in direction of -arrow B-.
• Free up the wire if needed.

  Courtesy of AUDI OF AMERICA, LLC

• Push the locking latches -2 and 4- upward.

NOTE: Carefully push the locking latches upward only until the Camera Control Module - J852- can be guided past.

Courtesy of AUDI OF AMERICA, LLC

• Remove Camera Control Module - J852- -1- to the rear, parallel to the retaining plate -5-, in direction of -arrow 3- from the mounts -arrows- from the retaining plate -5-.
• Remove the connectors -2- and -3- in direction of -arrows- and remove Camera Control Module - J852-

  Courtesy of AUDI OF AMERICA, LLC
