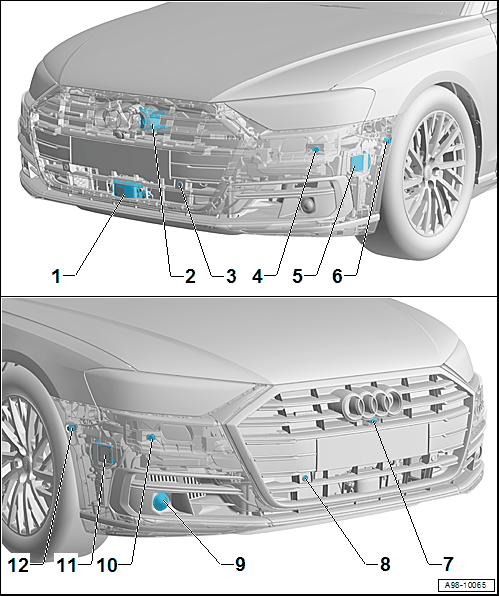

Component Location Overview - Sensors And Control Modules In Front Section Of Vehicle
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Laser Distance Regulation Control Module -J1122-
- Adaptive Cruise Control (ACC). Refer to ADAPTIVE CRUISE CONTROL (ACC) .
- Overview. Refer to OVERVIEW - LASER DISTANCE REGULATION CONTROL MODULE .
- Removing and Installing. Refer to Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
- Adjusting. Refer to LASER SENSOR (Laser Distance Regulation Control Module -J1122-), ADJUSTING .
- Night Vision System Camera -R212-
- Night Vision System. Refer to NIGHT VISION SYSTEM .
- Overview. Refer to OVERVIEW - NIGHT VISION SYSTEM CAMERA .
- Removing and Installing. Refer to Night Vision System Camera -R212-, REMOVING AND INSTALLING .
- Calibrating. Refer to NIGHT VISION SYSTEM, CALIBRATING .
- Left Front Center Parking Aid Sensor -G254-
- Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING .
- Left Front Parking Aid Sensor -G255-
- Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING .
- Control Module for Left Front Object Detection Radar Sensor -J1088-
- Front Corner Radar. Refer to FRONT CORNER RADAR .
- Removing and Installing. Refer to CONTROL MODULE FOR LEFT AND RIGHT FRONT OBJECT DETECTION RADAR SENSOR -J1088- / -J1089-, REMOVING AND INSTALLING .
- Calibrating. Refer to FRONT CORNER RADAR, CALIBRATING .
- Left Front Parallel Parking Assistance Sensor -G568-
- Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to LEFT/RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR -G568- / -G569-, REMOVING AND INSTALLING .
- Front Peripheral Camera -R243-
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Removing and Installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Right Front Center Parking Aid Sensor -G253-
- Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING .
- Control Module for Adaptive Cruise Control -J428-
- Adaptive Cruise Control (ACC). Refer to ADAPTIVE CRUISE CONTROL (ACC) .
- Overview. Refer to OVERVIEW - CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL .
- Removing and Installing. Refer to CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL -J428-, REMOVING AND INSTALLING .
- Adjusting. Refer to RADAR SENSOR (Control Module for Adaptive Cruise Control -J428-), ADJUSTING .
- Right Front Parking Aid Sensor -G252-
- Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING .
- Control Module for Right Front Object Detection Radar Sensor -J1089-
- Front Corner Radar. Refer to FRONT CORNER RADAR .
- Removing and Installing. Refer to CONTROL MODULE FOR LEFT AND RIGHT FRONT OBJECT DETECTION RADAR SENSOR -J1088- / -J1089-, REMOVING AND INSTALLING .
- Calibrating. Refer to FRONT CORNER RADAR, CALIBRATING .
- Right Front Parallel Parking Assistance Sensor -G569-
- Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to LEFT/RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR -G568- / -G569-, REMOVING AND INSTALLING .
