Control Module For Left And Right Front Object Detection Radar Sensor -J1088- / -J1089-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

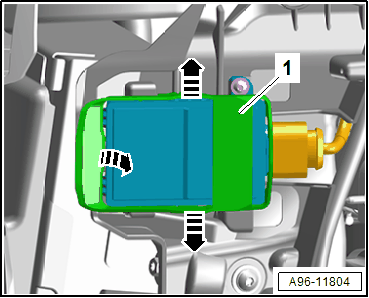

-- Release the catches in direction of -arrows- and remove the shield -1-.

Courtesy of AUDI OF AMERICA, LLC

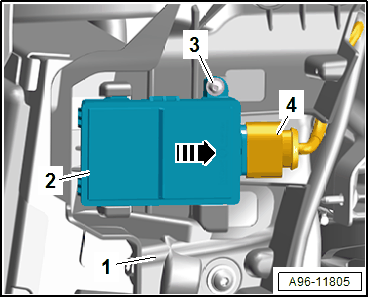

-- Remove the bolt -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the radar sensor -2- rearward from the mount -1- in direction of -arrow-.

-- Disconnect the connector -4-.

-- Remove the radar sensor.
