Lane Change Assistance Control Module -J769- / -J770-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Release the catches in direction of -arrows- and remove the shield -1-.

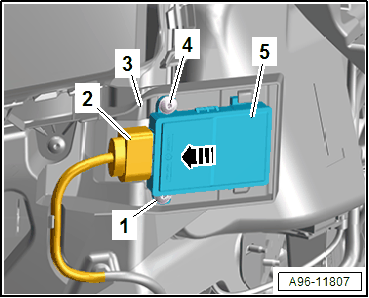

-- Remove the bolts -1 and 4-.
-- Remove the radar sensor -5- forward from the mount -3- in direction of -arrow-.
-- Disconnect the connector -2-.
