Night Vision System Control Module -J853-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the left front carpet. Refer to CARPET, REMOVING AND INSTALLING .
-- NAR version: remove the bolts -2- and nuts -1-, and remove the reinforcement plate -arrow-.

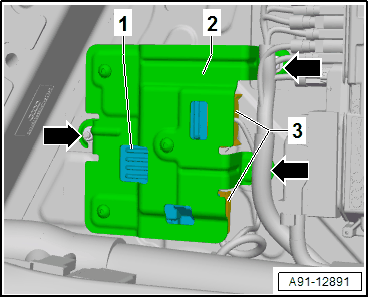

-- Remove the nuts -arrows- from the bracket -2-.
-- Release and disconnect the connectors -3- from the Night Vision System Control Module -J853- -1-.
-- Remove the Night Vision System Control Module -J853- -1- with the bracket -2-.

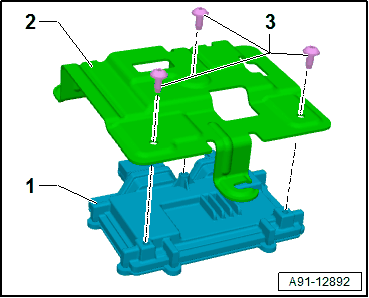

-- Remove the bolts -3-.
-- Remove the Night Vision System Control Module -J853- -1- from the bracket -2-.
