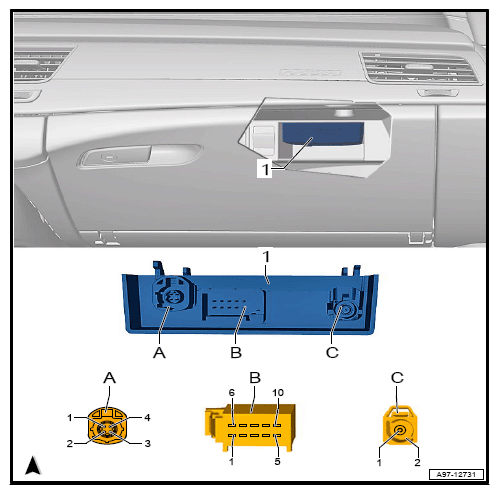

Chip Card Reader Control Module -J676- Location

  1. 1  - Chip Card Reader Control Module -J676-
  2. A  - 4-Pin Connector -T4ca-, brown
  3. B  - 10-Pin Connector -T10u-, black
  4. C  - Double Connector -T2gy-, yellow
G12778545Courtesy of AUDI OF AMERICA, LLC
