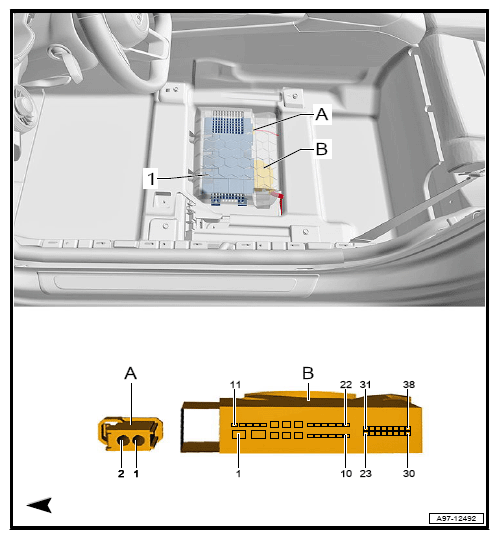

Digital Sound System Control Module -J525- Location

  1. 1  - Digital Sound System Control Module -J525-
  2. A  - Double Connector -T2fb-, MOST-Bus, black
  3. B  - 38-Pin Connector -T38-, black
G12778535Courtesy of AUDI OF AMERICA, LLC
