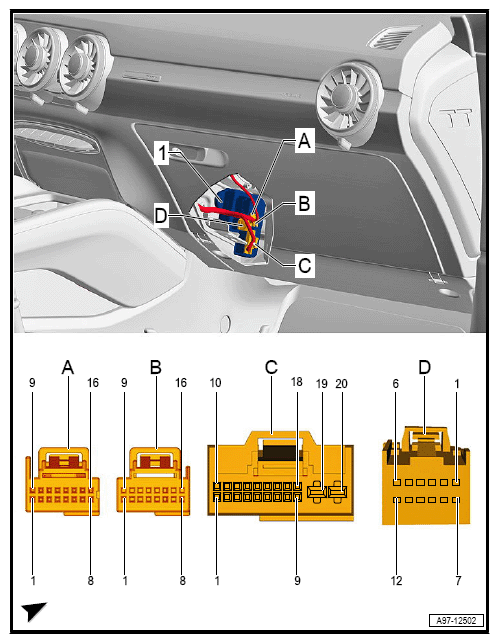

CLIMATRONIC Control Module -J255- Location

  1. 1  - Climatronic Control Module -J255-
  2. A  - 16-Pin Connector -T16d-, black
  3. B  - 16-Pin Connector -T16e-, brown
  4. C  - 20-Pin Connector -T20c-, black
  5. D  - 12-Pin Connector -T12d-, black
G12778515Courtesy of AUDI OF AMERICA, LLC
