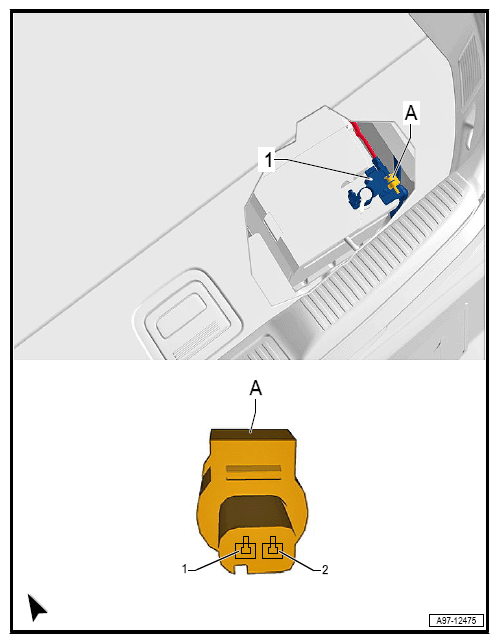

Battery Monitoring Control Module -J367- Location

  1. 1  - Battery Monitoring Control Module -J367-
  2. A  - Double Connector -T2a-, yellow
G12778575Courtesy of AUDI OF AMERICA, LLC
