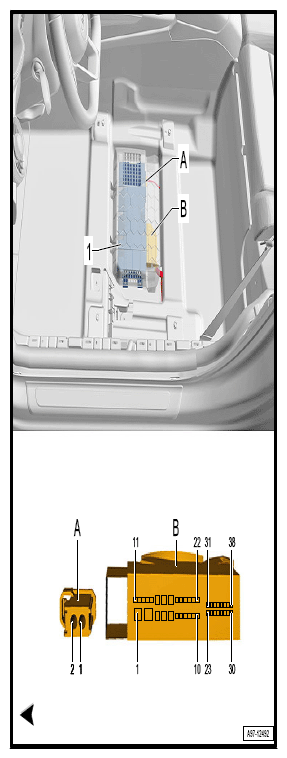

Digital Sound System Control Module -J525- Connector Views
38-PIN CONNECTOR -T38- (B)
| T38 (B) | Designation |
|---|---|
| 1 | Terminal 30, from Fuse Panel C SC Safety fuse 3 S133 |
| 2 | Terminal 31, to 639 Ground Connection (on left A-pillar) |
| 3 | |
| 4 | Left Front Midrange Speaker R103 |
| 5 | Left Front Midrange Speaker R103 |
| 6 | Center speaker 2 R219 |
| 7 | Left Front Bass Speaker R21 |
| 8 | Left Front Bass Speaker R21 |
| 9 | Left Front Bass Speaker R21 |
| 10 | Left Front Bass Speaker R21 |
| 11 | Left Rear Bass Speaker R15 |
| 12 | Left Rear Bass Speaker R15 |
| 13 | Right Rear Bass Speaker R17 |
| 14 | Right Rear Bass Speaker R17 |
| 15 | |
| 16 | Right Front Midrange Speaker R104 |
| 17 | Right Front Midrange Speaker R104 |
| 18 | Center speaker 2 R21 |
| 19 | Right Front Bass Speaker R23 |
| 20 | Right Front Bass Speaker R23 |
| 21 | Right Front Bass Speaker R23 |
| 22 | Right Front Bass Speaker R23 |
| 23 | Right Front Treble Speaker R22 |
| 24 | Left Front Treble Speaker R20 |
| 25 | Left Rear Treble Speaker R14 |
| 26 | Right Rear Treble Speaker R16 |
| 27 | |
| 28 | Center speaker R208 |
| 29 | Inside Microphone R74 Microphone Unit (in front roof module) R164 |
| 30 | |
| 31 | Right Front Treble Speaker R22 |
| 32 | Left Front Treble Speaker R20 |
| 33 | Left Rear Treble Speaker R14 |
| 34 | Right Rear Treble Speaker R16 |
| 35 | |
| 36 | Center speaker R208 |
| 37 | Inside Microphone R74 Microphone Unit (in front roof module) R164 |
| 38 | Ring Break diagnosis B444 OBD connection 1 (in main wiring harness) |
