Windshield Spray Pattern, Adjusting
Procedure :

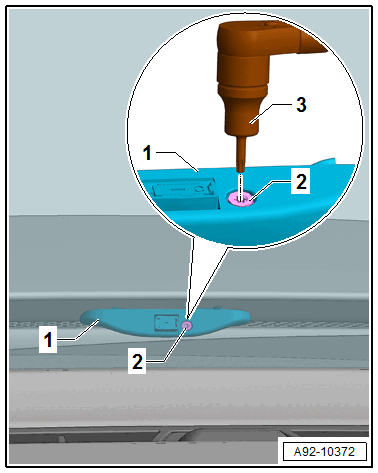

-- Align the adjusted nozzles units above the adjusting screw -2- according to the specification, using a tool with an external TORX® size 9 -3-.
-- If the spray pattern still does not meet the specifications, clean the corresponding spray nozzles. Refer to SPRAY NOZZLES, ADJUSTING .
NOTE:
The water jets of a nozzle unit can only be adjusted together and the height is adjusted via an adjusting screw. It is not possible to adjust the water jets individually or to adjust just one side.
