MECHATRONIC, Removing And Installing: Removing

-- Remove the transmission fluid pan. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .

-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the transmission fluid pump cover -A-.

Fig 1: Identifying Cap For Transmission Oil Pump And Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Loosen and remove the bolts in the following sequence: -1 to 10-.

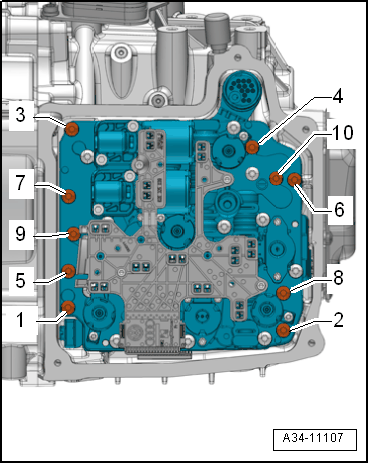

Fig 2: Mechatronic Bolts Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pull the Mechatronic out of the transmission housing until the long >>sensor arm<< is no longer in the transmission housing.

Fig 3: Identifying DSG Mechatronic J743, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pivot the Mechatronic downward.

-- Make sure that the locking tabs on the >>sensor arm<< do not break off.

-- Store the Mechatronic properly.

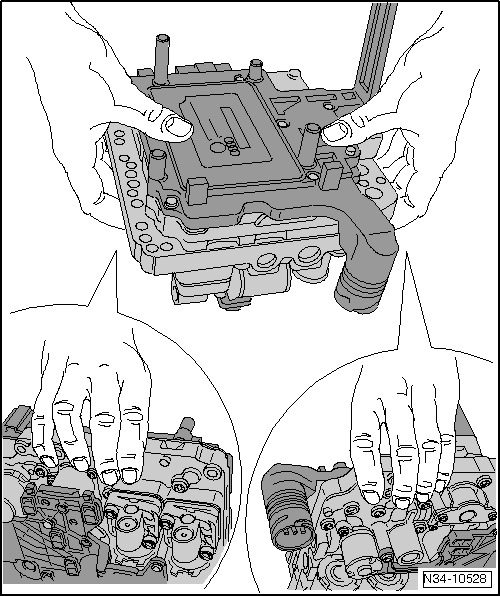

Fig 4: Caution Handling Mechatronic

Courtesy of AUDI OF AMERICA, LLC

• If the >>sensor arm<< is damaged, the Mechatronic must be replaced.
