Selector Lever Handle, Removing And Installing: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in the reverse order of removal while noting the following:

• The locking button -2- points in the direction of travel.

-- Press the selector lever handle -1- completely onto the selector lever -arrow B- without touching the locking button -2-.

• The selector lever handle must engage into the ring groove of the selector lever.

-- Turn the locking ring all the way in the direction of -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

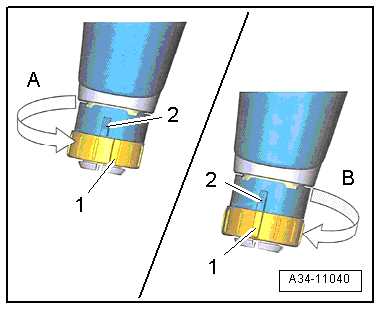

• It must be possible to turn the locking ring. If necessary, press the selector lever handle again.
• The tab -1- on the locking ring is under the tab -2- on the selector lever handle.
• The selector lever handle is only properly locked if the locking ring was turned. Only then may the locking button on the handle be pressed.
• The locking button may have an increased resistance to pressure the first time it is pushed after installing the selector lever handle.

-- Press the locking button on the selector lever handle.

-- Fold the selector lever boot downward and clip it in.

-- Check the selector mechanism. Refer to SELECTOR MECHANISM, CHECKING .
