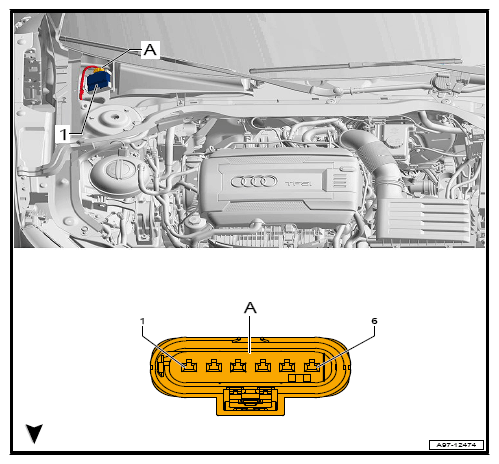

Structure-Borne Sound Control Module -J869- Connector Views
6-PIN CONNECTOR -T6AN- (A)
| T6AN (A) | Designation |
|---|---|
| 1 | Structure-Borne Sound Actuator R214 |
| 2 | Structure-Borne Sound Actuator R214 |
| 3 | Terminal 15, from D106 Connection 4 (in engine compartment wiring harness) B278 Positive connection 2 (15a) (in main wiring harness) Fuse Panel C SC |
| 4 | Terminal 31, to 201 Ground connection 5 (in engine compartment wiring harness) 209 Ground Connection 6 (in engine compartment wiring harness) 656 Ground connection on right headlamp |
| 5 | CAN-Bus powertrain, Low E124 Powertrain CAN-Bus Low Connection 1 (in engine wiring harness) B390 Powertrain CAN-Bus Low Connection 1 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
| 6 | CAN-Bus powertrain, High E123 Powertrain CAN-Bus High Connection 1 (in engine wiring harness) B383 Powertrain CAN-Bus High Connection 1 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
