Peripheral Camera Control Module -J928-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the cover from the left luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

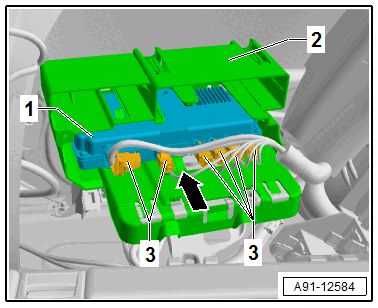

-- Release and disconnect the connectors -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the catch -arrow- downward.

-- Remove the Peripheral Camera Control Module -J928- -1- to the center from the bracket -2-.
