Windshield Projection Head Up Display Control Module, Removing And Installing: Removing

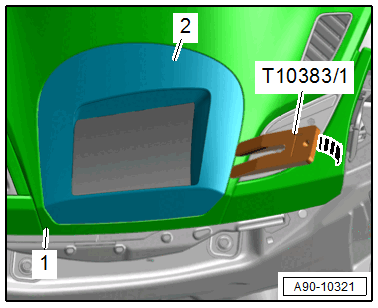

-- Press out the upper cover -2- from the instrument panel -1- in the direction of -arrow- using the :T10383 .

Courtesy of AUDI OF AMERICA, LLC

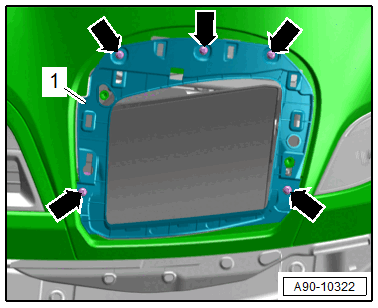

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the frame -1-.

-- Cover the control module -3- with a soft towel.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the windshield. Refer to WINDSHIELD, REMOVING AND INSTALLING .

CAUTION:

There is a risk of destroying the windshield projection head up display control module.

- Only remove the designated bolts from the control module.

- Never remove the bolts for the housing upper section.

-- Remove the bolts -1, 2 and 4-.

-- Lift the control module slightly and disconnect the connector.

-- Remove the control module.
