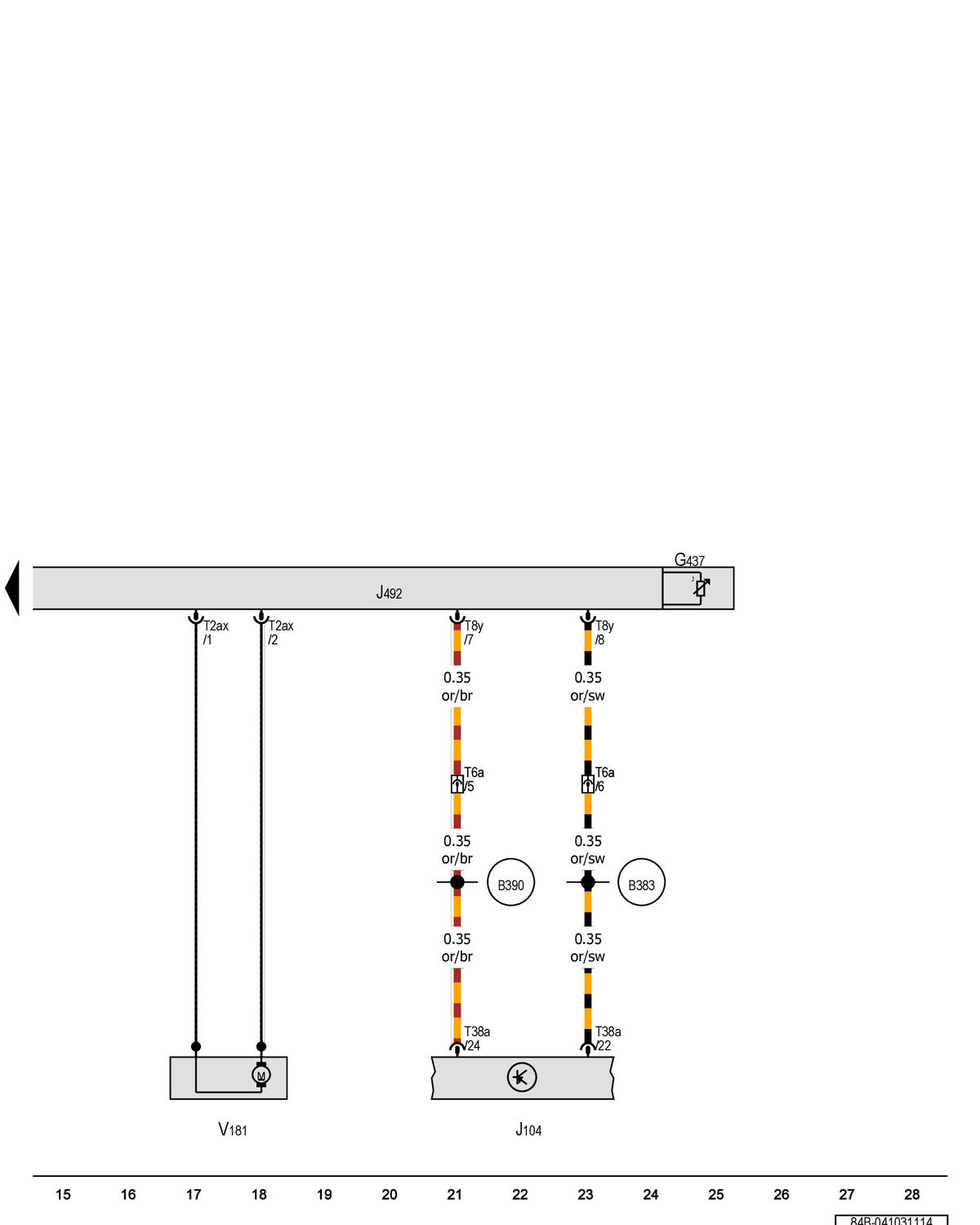

All Wheel Drive Control Module

Courtesy of AUDI OF AMERICA, LLC

G437  Oil pressure/temperature sensor

J104  ABS control module

J492  All wheel drive control module

T2ax  Double connector

T6a  6-pin connector

T8y  8-pin connector

T38a  38-pin connector

V181  Haldex clutch pump

(B383) Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) Powertrain CAN bus low connection 1 (in main wiring harness)
