Active Steering Control Module -J792- Connector Views

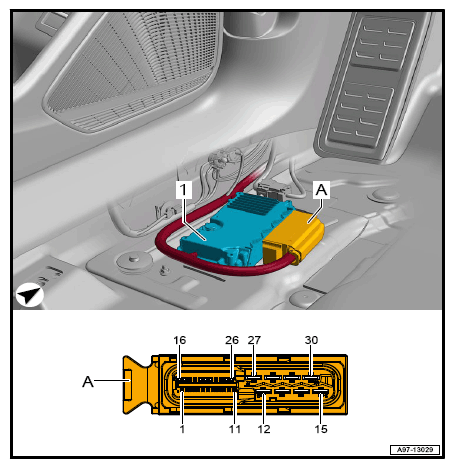

30-PIN CONNECTOR -T30-
| T30 (A) | Designation |
|---|---|
| 1 | Terminal 15 |
| 2 | |
| 3 | Data-Bus Wire (FlexRay-Bus) |
| 4 | Data-Bus Wire (FlexRay-Bus) |
| 5 | |
| 6 | Active Steering Motor V477 |
| 7 | |
| 8 | Active Steering Motor V477 |
| 9 | Active Steering Motor V477 |
| 10 | Active Steering Motor V477 |
| 11 | |
| 12 | |
| 13 | Terminal 31 |
| 14 | Active Steering Motor V477 |
| 15 | Active Steering Motor V477 |
| 16 | |
| 17 | |
| 18 | Data-Bus Wire (FlexRay-Bus) |
| 19 | Data-Bus Wire (FlexRay-Bus) |
| 20 | |
| 21 | Active Steering Motor V477 |
| 22 | |
| 23 | Active Steering Motor V477 |
| 24 | Active Steering Motor V477 |
| 25 | |
| 26 | Active Steering Motor V477 |
| 27 | Terminal 30 |
| 28 | |
| 29 | Shielding |
| 30 | Active Steering Motor V477 |
