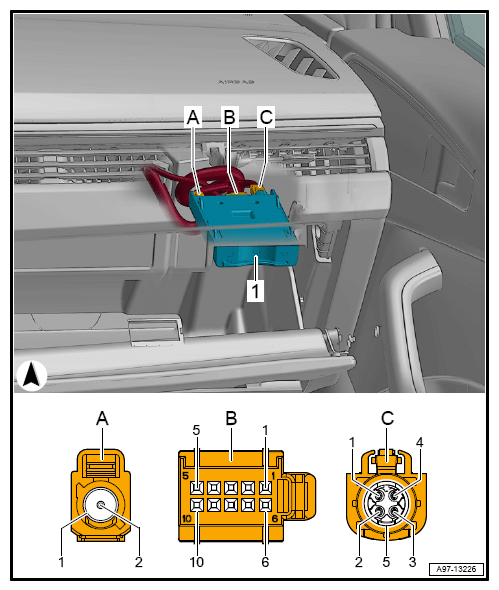

Chip Card Reader Control Module -J676-, Location

NOTE: Illustration Shows Location For Left-Hand Drive Models. In Right-Hand Drive Models, Installation Is Mirror-Inverted.

1. Chip Card Reader Control Module -J676-

1. Double Connector -T2IG-, Yellow
2. 10-Pin Connector -T10X-, Black
3. 4-Pin Connector -T4Fu-, Brown
   • USB Connection
