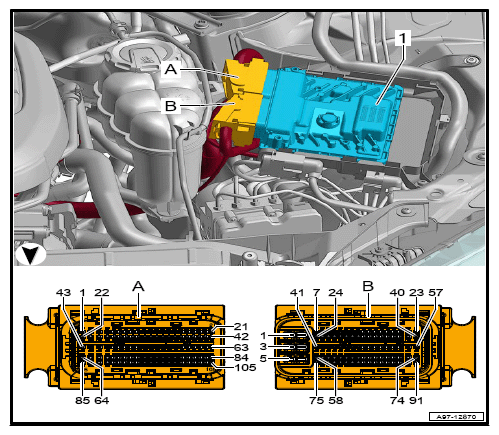

Engine Control Module (ECM) -J623- Location (196-Pin)

  1. Engine Control Module (ECM) -J623-
  1. 105-Pin Connector -T105-, Black
  2. 91-Pin Connector -T91-, Black
G12767478Courtesy of AUDI OF AMERICA, LLC
