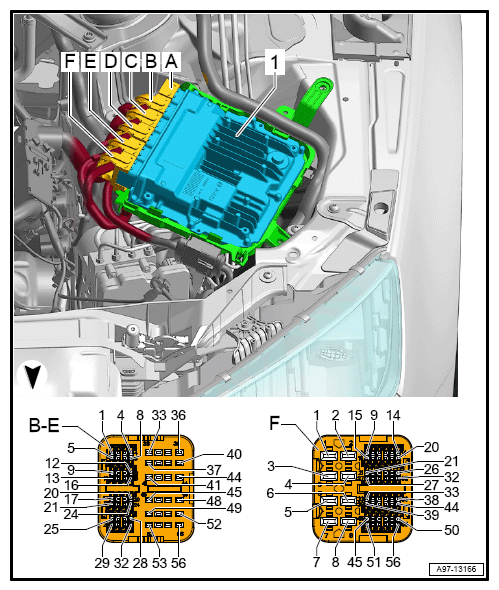

Engine Control Module (ECM) -J623-, Location (280-Pin)

  1. Engine Control Module (ECM) -J623-
  1. 56-Pin Connector -T56A-, If Equipped
  2. 56-Pin Connector -T56B-, Black
  3. 56-Pin Connector -T56C-, Black
  4. 56-Pin Connector -T56D-, Black
  5. 56-Pin Connector -T56E-, Black
  6. 56-Pin Connector -T56F-, Black
G12767479Courtesy of AUDI OF AMERICA, LLC
