Power Steering Control Module -J500- Connector

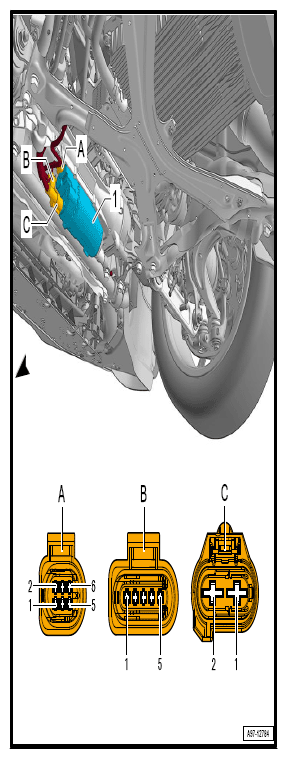

6-Pin Connector -T6F- (B)/Double Connector -T2El- (C)

G12767197Courtesy of AUDI OF AMERICA, LLC
T6f (A) Designation
1 Terminal 15
2
3 Data-Bus Wire (FlexRay-Bus)
4
5 Data-Bus Wire (FlexRay-Bus)
6
T2el (C) Designation
1 Terminal 30
2 Terminal 31
