Engine Sound Generator Control Module J943
>>
Engine Sound Generator Control Module -J943- Connector Views, Vehicle Without High-Volt-System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Sound Generator Control Module -J943- Connector Views, Vehicle Without High-Volt-System

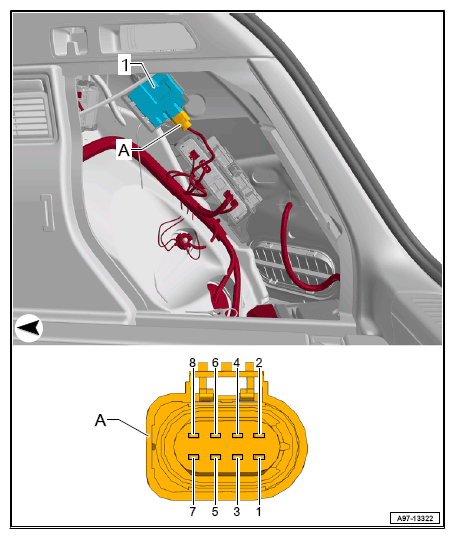

8-PIN CONNECTOR -T8BA-
Courtesy of AUDI OF AMERICA, LLC
-T8ba- (A)
Designation
1
CAN-Bus
2
Terminal 31
3
CAN-Bus
4
Terminal 15
5
Engine sound generator actuator 1 R257
6
Engine sound generator actuator 1 R257
7
Engine sound generator actuator 1 R257
8
Engine sound generator actuator 1 R257
