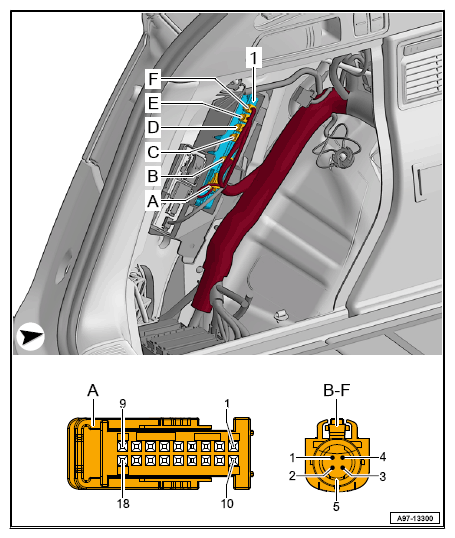

Peripheral Camera Control Module -J928- Location

  1. Peripheral Camera Control Module -J928-
  1. 18-Pin Connector -T18A-, Black
  2. 5-Pin Connector -T5O-, Brown
  3. 5-Pin Connector -T5I-, Green
  4. 5-Pin Connector -T5K-, Black
  5. 5-Pin Connector -T5M-, White
  6. 5-Pin Connector -T5N-, Blue
G12779510Courtesy of AUDI OF AMERICA, LLC
