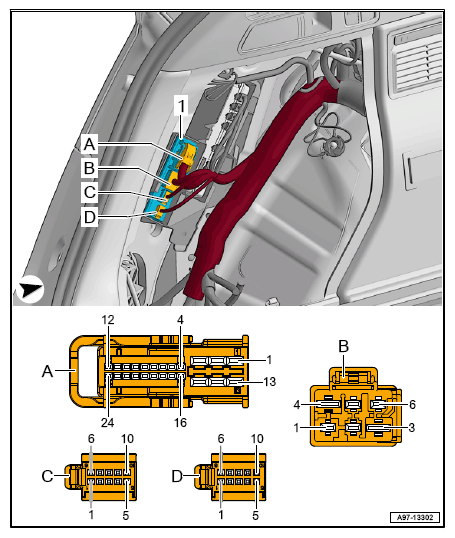

Towing Recognition Control Module -J345- Location

  1. Towing Recognition Control Module -J345-
  1. 24-Pin Connector -T24-, Black
  2. 6-Pin Connector -T6E-, Black
  3. 10-Pin Connector -T10I-, Black
  4. 10-Pin Connector -T10K-, Red
G12779485Courtesy of AUDI OF AMERICA, LLC
