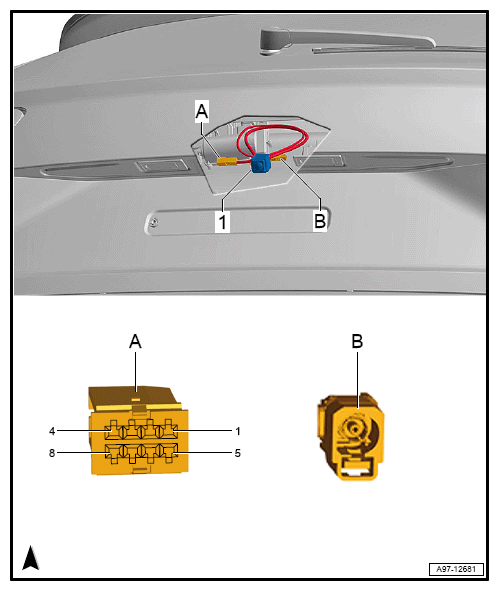

Rear View Camera System Control Module -J772- Location

  1. Rear View Camera System Control Module -J772-
  1. 8-Pin Connector -T8K-, Black
  2. Double Connector -T2Z-, Grey
G12767580Courtesy of AUDI OF AMERICA, LLC
