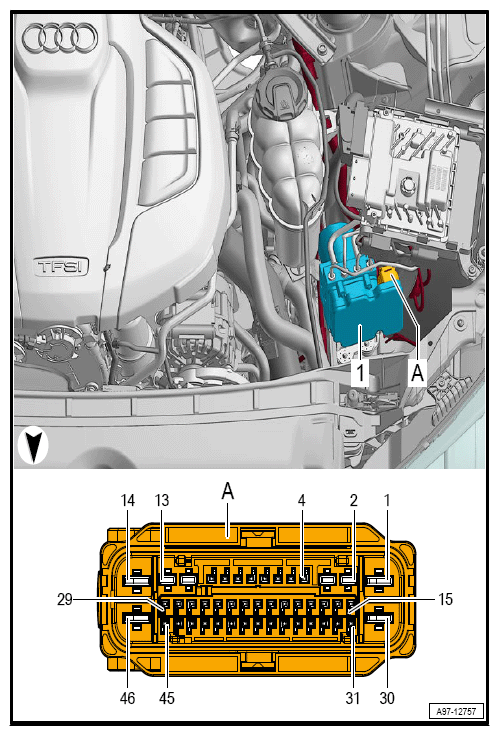

Abs Control Module -J104- Location
ABS Control Module -J104-
46-Pin Connector -T46-, Black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
