Engine Sound Generator Control Module -J943- Connector View, Vehicle With High-Volt-System

12-PIN CONNECTOR -T12Y-

-T12y- (A) Bezeichnung
1 Voltage Supply (VS)
2 GND,
3 Voltage Supply (VS)
4 GND
5
6
7 Voltage Supply (VS)
8 GND,
9
10
11 CAN-L
12 CAN-H

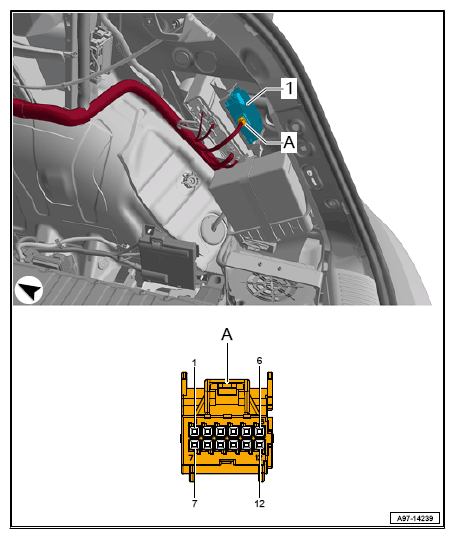

G12779526Courtesy of AUDI OF AMERICA, LLC
